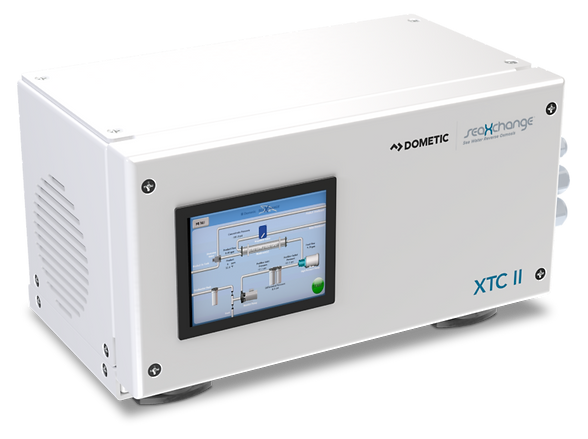

XTCII Series Water Maker

Make Water Automatically

The SeaXchange XTC II Series is the most compact fully automatic seawater reverse-osmosis systems in it’s class.  It features a fully automatic pressure regulator precisely driven with a stepper motor that regulates and monitors system functions regardless of feed water salinity and temperature without operator intervention. Though fully automated, the XTC II also features an integrated mechanical backup built right into each system. With production capacities up to 2,200 GPD, the XTC II is the perfect desalinator for mid-size to large vessels.

​

Production Capacities – 600, 1200, 1800, 2200 GPD
SEA WATER REVERSE OSMOSIS SYSTEM

XTCII
Layer 5.png
Layer 3.png
Layer 4.png

Key Features

  • Fully Automatic Operation with Mechanical Redundancy

  • Less Noise

  • 2-in-1 Modular or Compact Frame Configuration

  • Fully Automated

  • 7” Full-Color Touchscreen Display (NEMA 4X)

  • NMEA 2000 Compatible

  • Optimized Performance

  • Automatic & Programmable Freshwater Flush

  • Clear Commercial Pre-filter Housings

  • No Spill Oil Change System

  • Automatic Freshwater Flush

  • Transparent Oil Level Indicator Window

  • Digital TDS (Total Dissolved Solids) Reading

  • Vibration Isolation Mounts

  • Filmtec High Rejection Seawater Membranes

  • Fiberglass Reinforced High Pressure Membrane Vessels

  • In case of computerized automation failure, our XTCII desalinator is designed with mechanical override.

  • Tank Switch Input

  • TEFC Motor with Thermal Motor Protection

  • Patented Syllent Marine Booster Pump

  • 316L Stainless High-Pressure Pump

  • 316L Stainless Steel Boost Pump Motor Shaft

  • 316L Stainless Steel Flow & Pressure Components

  • Dual Voltage 50/60 Hz Motors

  • Fully Upgradable from 600gpd to 2,200gpd

  • Optional Secondary 7’ Remote Display

  • Made in the U.S.A.

SXII Series Water Maker

Make Water Hands-on

The SeaXchange SXII Water Maker offers traditional manual functions in an easy to use operation that is powerful, durable, and reliable. Featuring a single pressure adjustment to vary feed water conditions, digital and analog instrumentation for precision accuracy/redundancy, and a backlit LCD touch screen display that monitors and provides any operator the know- how to produce water effectively and efficiently. Offered in multiple configurations and production capacities up to 2,200 GPD, the SXII is the prefect desalinator for mid-size to large vessels.

​

Production Capacities – 600, 1200, 1800, 2200 GPD
SEA WATER REVERSE OSMOSIS SYSTEM

SXII
Layer 5.png
Screen Shot 2021-11-11 at 11.57_edited.jpg
Layer 4.png

Key Features

  • Semi-Automatic Operation

  • 2-in-1 Modular or Compact Frame Configuration

  • LCD Backlit Display

  • NMEA 2000 Compatible

  • Clear Commercial Pre-filter Housings

  • No Spill Oil Change System

  • Digital TDS (Total Dissolved Solids) Reading

  • Vibration Isolation Mounts

  • Filmtec High Rejection Seawater Membranes

  • Fiberglass Reinforced High Pressure Membrane Vessels

  • Tank Switch Input

  • TEFC Motor with Thermal Motor Protection

  • Patented Syllent Marine Booster Pump

  • 316L Stainless Steel High-Pressure Pump

  • Vibration-Isolation mounts throughout ensure superior noise and vibration reduction.

  • 316L Stainless Steel Boost Pump Motor Shaft

  • 316L Stainless Steel Flow & Pressure Components

  • Dual voltage 50/60 Hz motors

  • Fully Upgradeable from 600gpd to 2,200gpd

  • Optional Secondary LCD Remote Display

  • Made in the U.S.A.

CX Series Water Maker

Commercial grade. At land or sea

Built to withstand the toughest and most demanding applications! CX is our commercial-grade series designed for land-based situations, oil rigs, military applications and other industrial-grade demands. With oversized media filtration technology to extend the life of replacement sediment filters, CX watermakers are made to stand up to heavy use.

​

40,000 GPD / 151 GPH (151,416 LPD)
SEAWATER REVERSE OSMOSIS SYSTEM

CX Series
Screen Shot 2021-11-12 at 12.16_edited.jpg
Screen Shot 2021-11-12 at 12.16_edited.jpg
Screen Shot 2021-11-12 at 12.16_edited.jpg

Key Features

  • Oversized Media Filtration Technology

  • Absolute 20-Micron & 5-Micron Sediment Filter Housings

  • Fully Automatic Operation

  • Global Remote Access via Internet for Monitoring/Troubleshooting

  • Automatic High-Pressure Valve with Integrated Mechanical Backup

  • 13” Color Touchscreen Display (NEMA 4X)

  • Smartphone Control Capabilities

  • Features absolute 20-micron and 5-micron sediment filter housings (as opposed to nominal) to protect the high-pressure pump from premature failure.

  • LCD User Interface Backup Display

  • Stainless 316L High-Pressure Pump

  • Features an integrated mechanical backup built right into each system, and if the User Interface fails, there’s even an LCD backup in the control box.

  • No plastic here! All components are crafted from 316L stainless steel, from the high-pressure pump to the boost pump motor shaft.

  • Stainless 316L Boost Pump Motor Shaft

  • TEFC Motor with Thermal Motor Protection

  • Automatic Freshwater Flush
